Description
- Practical Pull down shelves:High cabinet pull down shelf is a very good addition to any upper cabinet,pull down cabinet organizer allow you to make full use of the plentiful upper cabinet space you have in your kitchen, while potentially also adding value to the unit,pull down shelving system brings hard-to-reach items down, Fantastic product to extend reachability in tall cabinets
- Well-made pull-down shelf:Pull Down Basket is made of tempered glass and aluminum alloy,Better performance than other materials,strong and durable, strong load-bearing.The surface adopts nano-protective coating, no rust, isolate the grease, easy to clean.Thickened side panel combination of strong double support arms,Drop Down Cabinet Shelf Storage use more stable, comfortable silicone handle does not hurt the hand
- Smooth Pulling: Advanced pneumatic damper system with strong tension spring ensures easy pull-down and stable push-back even for teenagers and elderly people. You can press the adjusting button inwards and lock/unlock it clockwise/counterclockwise to strengthen/reset the pull-down resistance, thus balancing resistance to prevent falling too fast
- Adjustable Bearing: The three-gear assistance adjustment(2.2-11.02 lbs, 11.02-15.4 lbs,13.22-26.4 lbs) through the adjusting button on the right and left sides can meet your different storage needs. The 2-tier design with each layer 22.2*10.63 inches
- Ready to Use&Install: The 1.96" thick wall brackets are thick enough to elude face-frame stile and most types of hinges. Its pull-down design also makes this shelf support suspended installation, sliding doors, upward sliding doors, and double doors. With the simple structure and an English manual, you can install and use this pull-down cabinet shelf directly without tedious assembly, saving you labor and time
Description
Installing a 2-tier pull-down shelf in your cabinet can effectively make full use of your upper cabinets and keep your kitchen tidy, bringing a comfortable cooking environment to you. Our shelf, adopting an advanced pneumatic damper system with a sturdy structure, is a space saver, stylish decor, and a good helper that helps you to get items to higher places with less effort.
Application
It can be used as a dish rack, spice rack, and food storage rack in kitchen/bar/cafe cabinets, pantries, closets, and other upper cabinets to store snacks, bowls, plates, spices, spice bottles, and other kitchen items. It is made for a cabinet of inner width23.6''. The size of the fully installed system is 23.6''W x 10.6'' D x 22.04''H. And the load-bearing capacity of the cabinet should be more than 44 lbs.
Specifications
Model: 600Frame
Color: Black
Style: Modern, Pull-out
Shape: Rectangular
Room Type: Kitchen
Shelf Type: Sliding Shelf
Age Range: Adult
Mounting Type: Wall Mount
Material: Tempered Glass, Aluminum Alloy, Steel
Process: Cutting, Nano Coating, Plastic Spraying
Special Feature: Damping Hydraulic Rod
Applicable Cabinet: Width: 60cm/24inch; Depth: 27cm/10.6inch; Height: 56cm/22.04inch;
Load-bearing Capacity: 20kg/44 lbs
Three-gear Adjustment: 1-5kg/2.2-11.02 lbs, 5-7kg/11.02-15.4 lbs, 6-12kg/13.22-26.4 lbs
Max. Load-bearing Capacity: 12kg/26.4 lbs
Right Switch Loaded: 3-5kg/ 6.6-11.02 lbs
Left Switch Loaded: 1-3kg/2.2-6.6 lbs
Minimum Distance from Cabinet: 5.5cm/2.16inch
Double-lever Lever Thickness: 5.5cm/2.16inch
Layer Plate Thickness: 6mm/0.23inch
Side Plate Thickness: About 1.3mm/0.05inch
Guardrail Height: 8cm/3.15inch
Wall Bracket Thickness: 5cm/1.96inch
Wall Bracket Size(W*H): 21*30.5cm/8.27*12inch
Interlayer Spacing: 27cm/10.63inch

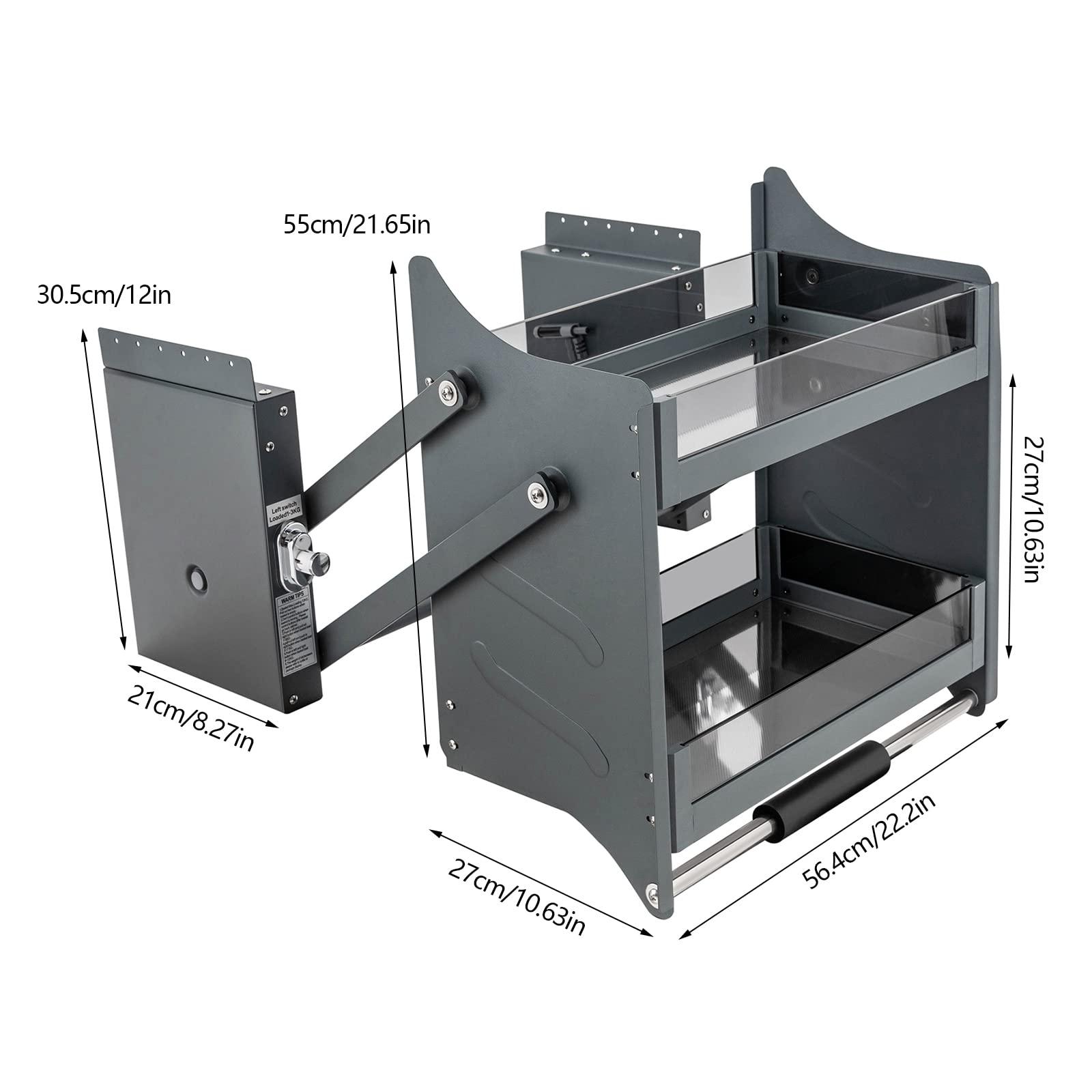

Product Size: 56.4*27*55cm/22.2*10.63*21.65inch
Package Size: 57*57*28cm/22.44*22.44*11.02inch
Net Weight: 13kg/28.66 lbs
Gross Weight: 15kg/33 lbs
Package Included
1* Pull-down Cabinet Shelf
1* English Instruction
Notes
Please make sure that your cabinet size is suitable before purchasing.
Please check the parts and read the instruction carefully before mounting.
The maximum load-bearing capacity of the basket is 26.4 lbs. Please pull out the buttons when the basket is empty. Pull in the left and pull out the right button when the basket loads 1-5kg/2.2-11.02 lbs. Pull out the left and push in a tight button when the basket loads 5-7kg/11.02-15.4 lbs. Push in the left and right buttons when the basket loads 6-12kg/13.22-26.4 lbs. For the weight of kitchenware, please refer to the bottle or package display.
Please do not control buttons when the basket is moving. Please control the buttons after they go back cabinet.
